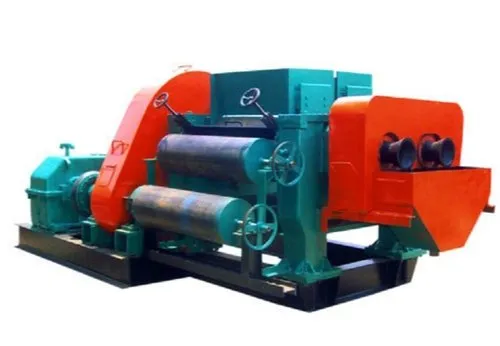

75HP, Spherical  Baring Unit Drive Machine,
Butail & WTR

Capacity150 kg/hr
Motor Power100 HP
Front Roll Diameter21 Inch
Rear Roll Diameter24 Inch
Roller Length36 Inch
Friction Ratio1 : 2.30
ConditionNew
Country of OriginMade in India

Rubber Refiner Mills are used to make reclaim crumb sheets, which are used in a variety of rubber and footwear industry products, such as the EVA sole recycling process. In comparison to the back roll, the front roll has a smaller diameter.

The Rear Rolls have a faster surface speed than the Front Rolls, which is a feature comparable to that of a traditional rubber mixing mill. The difference sized rolls spinning at significantly different speeds in your refiner mill, on the other hand, produce a high friction ratio.

Reclaimed sheets are stored and sold for a wide range of end products, including new tyres tubes, automotive floor mats, de-vulcanization for low-tech pressed or extruded rubber goods, tread rubbers, adhesives, sealing and tape compounds, moulded products.

We manufacture heavy duty refiner mills, which are used for refining of reclaimed rubber. These mills are manufactured using high grade raw material to put forward their wear resistant hard surfaces. These are appreciated for their features such as high efficiency and low power consumption, compact design, high capacity, reliability and flawless operation.


Applications:

Reclaimed rubber Sheets made on Refiner Mills are widely used in making :

· Extruded Products

· Calendared Products

· Tires Tubes

· Rubber Tiles

· Rubber Mats

· Artificial Grounds

· Weights used in Gyms

· Automobile parts

· Military parts

· Footwear

· Conveyor Belts

· V – Belts

· Electric Shock Absorber Sheets

· Liners in Tubless Tyres
